SediVue Dx Urine Sediment Analyser
The new standard for urine sediment analysis
- Delivers consistent, accurate results in approximately three minutes* from only 165 μl (four–five drops) of fresh urine.
- Examines the equivalent of 45 high-power fields, then identifies and classifies elements within the sediment.
- Produces high-resolution, high-contrast digital images that can be shared in real time.
- Includes new Neural Network 2.0 upgrade, which enhances accuracy across all 11 parameters.
Red blood cells (RBCs)
White blood cells (WBCs)
Nonsquamous (e.g., transitional cells,
renal tubular cells)
Nonhyaline (e.g., cellular casts, granular casts)
Calcium oxalate dihydrate
Unclassified (all other crystals)
Pipette 165 µl (four-five drops) urine.
Press start button and walk away.
Precision onboard gravitational centrifuge
- Spins at a significantly lower force than most in-house centrifuges to preserve delicate casts that external centrifuges break apart and to ensure sample integrity.
- In 30 seconds, gently deposits formed elements into a monolayer at the bottom of the cartridge (similar to IDEXX reference laboratory methodology).

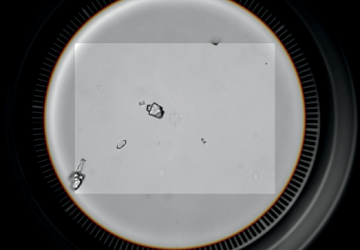

Inverted microscope with built-in camera
- Examines the equivalent of 45 high-power fields from beneath the sample to maximise visibility of clinically relevant particles.
- Captures 70 high-resolution images per run.
- Autofocuses on each shot for crisp images.
- Adjusts exposure with each image to ensure optimal contrast.
Neural Network 2.0
- Uses artificial intelligence, similar to facial recognition software, so the instrument is always improving.
- Has the ability to learn and train on new data – it’s constantly getting smarter.
- Leverages a knowledge base of 14 million images submitted from 200,000 patients – 30 times the roughly 450,000 images used to develop the first-generation SediVue Dx analyser.
Dimensions & weight
Width: 12.6 in (320 mm)
Depth: 12.6 in (320 mm)
Height: 13.2 in (336 mm)
Weight: 32 lb (15 kg)
